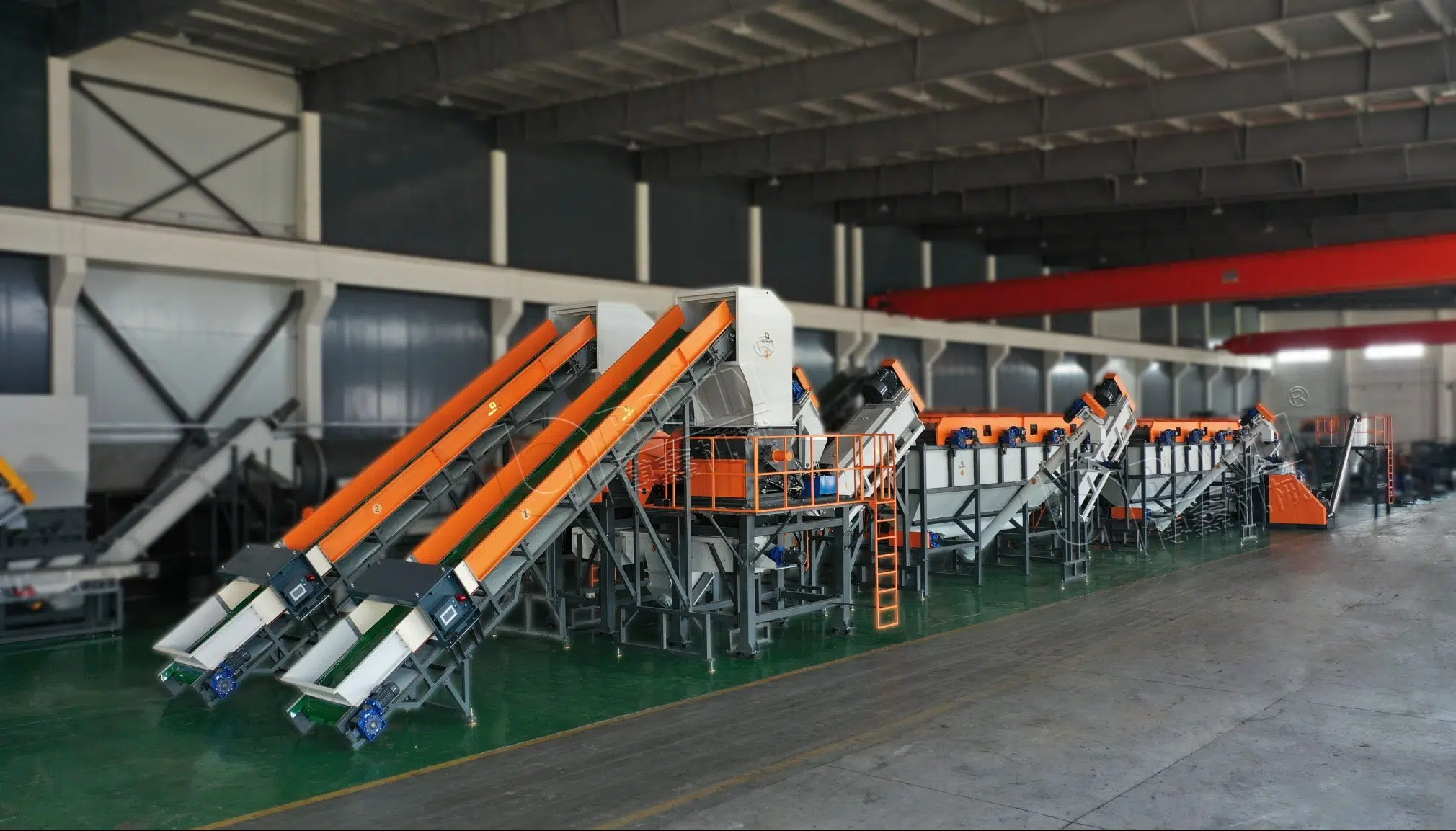

Waste PP PE Film Washing Recycling Pelletizing Line

Boxin’s plastic film recycling machine aims to recycle waste agricultural film, winding film, garbage bags, woven bags, tonnage bags, etc.

The film recycling Pelletizing line process includes crushing, separating, washing, friction washing, hot washing, dewatering, drying, and pelletizing.

The removal rate of various impurities mixed into the film material can be more than 96%.

The moisture content of the final product is less than 3 per cent

Through the pushing system to forcibly send the materials to the rotor for shredding, the shredder is equipped with a large-capacity hopper and crushing chamber, with efficient shredding, providing large shear force to ensure high grinding output.

Low RPM and high torque for uniform size of the finished crushed product, ease of cleaning and drying, and removal of large amounts of abrasive material (sand, grit, etc.) to protect the rest of the system.

crusher cuts film into small pieces of film with sharp and wear-resistant D2 blades and adds water, which not only reduces the friction heat between the knife and the plastic but also pre-treats the impurities inside the film. The crushed are passed through customized aperture screen sizes to achieve the optimal size, such as 8mm~16mm.

Washing float pool drum for the intense pressure under design, maximum removal of residual impurities, different specific gravity to be separated, discharging for the continuous claw drive design, sink to ensure that the material is uniform and constant at the same time to control the content.

The blades are driven by the spindle to strike the surface of the film at a constant speed. Through friction, the fluidity of water cleans the film while discharging the stains downwards and lifting the material upwards to further reduce the water content.

High and low speed dual friction system for effective film cleaning at different speeds.

They are mainly used for the semi-plasticizing and dryer of film. The specially-structured screw runs at high pressure to remove moisture. The electromagnetic heater semi-plasticizes and extrudes it through the die, and the high-speed rotating cutter head uniformly cuts the pellets.

The Chamber Pelletizer cuts plastic material into small flakes by means of a built-in rotating blade and a fixed blade on the wall. Heat caused by high-speed friction preheats and dries the flakes and causes them to shrink and directs the material downward into the extruder.
